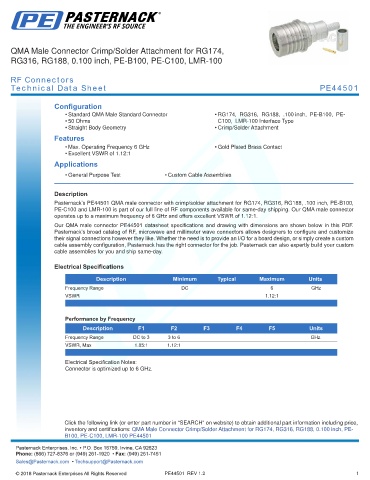

QMA Male Connector Crimp/Solder Attachment for RG174,
RG316, RG188, 0.100 inch, PE-B100, PE-C100, LMR-100

RF Connectors
Technical Data Sheet PE44501

Configuration
• Standard QMA Male Standard Connector • RG174, RG316, RG188, .100 inch, PE-B100, PE-
• 50 Ohms C100, LMR-100 Interface Type
• Straight Body Geometry • Crimp/Solder Attachment
Features
• Max. Operating Frequency 6 GHz • Gold Plated Brass Contact
• Excellent VSWR of 1.12:1
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44501 QMA male connector with crimp/solder attachment for RG174, RG316, RG188, .100 inch, PE-B100,
PE-C100 and LMR-100 is part of our full line of RF components available for same-day shipping. Our QMA male connector
operates up to a maximum frequency of 6 GHz and offers excellent VSWR of 1.12:1.
Our QMA male connector PE44501 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.12:1
.

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 3 3 to 6 GHz
VSWR, Max 1.05:1 1.12:1
.
Electrical Specification Notes:
Connector is optimized up to 6 GHz.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: QMA Male Connector Crimp/Solder Attachment for RG174, RG316, RG188, 0.100 inch, PE- -
B100, PE-C100, LMR-100 PE44501 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE44501 REV 1.2 1
