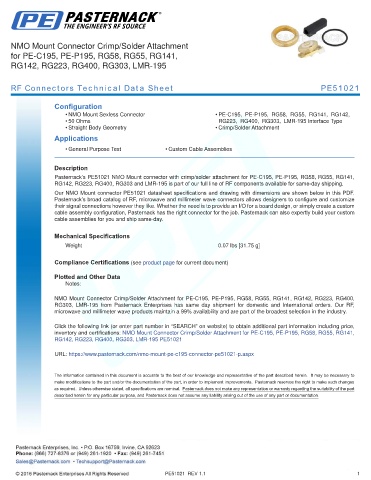

NMO Mount Connector Crimp/Solder Attachment
for PE-C195, PE-P195, RG58, RG55, RG141,
RG142, RG223, RG400, RG303, LMR-195

RF Connectors Technical Data Sheet PE51021

Configuration
• NMO Mount Sexless Connector • PE-C195, PE-P195, RG58, RG55, RG141, RG142,
• 50 Ohms RG223, RG400, RG303, LMR-195 Interface Type
• Straight Body Geometry • Crimp/Solder Attachment
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE51021 NMO Mount connector with crimp/solder attachment for PE-C195, PE-P195, RG58, RG55, RG141,
RG142, RG223, RG400, RG303 and LMR-195 is part of our full line of RF components available for same-day shipping.
Our NMO Mount connector PE51021 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications
.
Weight 0.07 lbs [31.75 g]
.

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

NMO Mount Connector Crimp/Solder Attachment for PE-C195, PE-P195, RG58, RG55, RG141, RG142, RG223, RG400,
RG303, LMR-195 from Pasternack Enterprises has same day shipment for domestic and International orders. Our RF,
microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: NMO Mount Connector Crimp/Solder Attachment for PE-C195, PE-P195, RG58, RG55, RG141,
RG142, RG223, RG400, RG303, LMR-195 PE51021

URL: https://www.pasternack.com/nmo-mount-pe-c195-connector-pe51021-p.aspx

PE51021 REV 1.1 1
