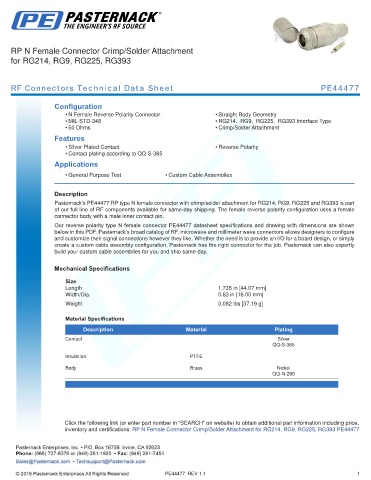

RP N Female Connector Crimp/Solder Attachment
for RG214, RG9, RG225, RG393

RF Connectors Technical Data Sheet PE44477

Configuration
• N Female Reverse Polarity Connector • Straight Body Geometry
• MIL-STD-348 • RG214, RG9, RG225, RG393 Interface Type
• 50 Ohms • Crimp/Solder Attachment
Features
• Silver Plated Contact • Reverse Polarity
• Contact plating according to QQ-S-365
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44477 RP type N female connector with crimp/solder attachment for RG214, RG9, RG225 and RG393 is part
of our full line of RF components available for same-day shipping. The female reverse polarity configuration uses a female
connector body with a male inner contact pin.
Our reverse polarity type N female connector PE44477 datasheet specifications and drawing with dimensions are shown
below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure
and customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.735 in [44.07 mm]
Width/Dia. 0.63 in [16.00 mm]
.
Weight 0.082 lbs [37.19 g]
.
Material Specifications
Description Material Plating
Contact Silver
QQ-S-365

Insulation PTFE
Body Brass Nickel
QQ-N-290

.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP N Female Connector Crimp/Solder Attachment for RG214, RG9, RG225, RG393 PE44477

PE44477 REV 1.1 1
