RP N Female Connector Crimp/Solder Attachment
For RG55, RG141, RG142, RG223, RG400

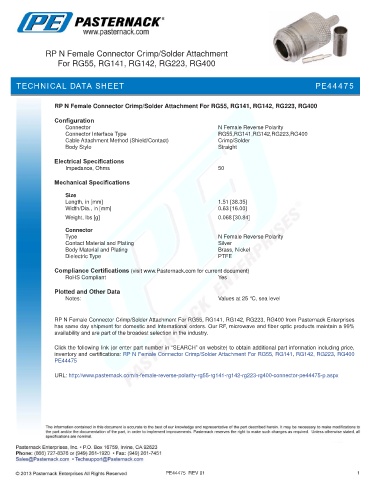

TECHNICAL DATA SHEET PE44475

RP N Female Connector Crimp/Solder Attachment For RG55, RG141, RG142, RG223, RG400

Configuration
Connector N Female Reverse Polarity
Connector Interface Type RG55,RG141,RG142,RG223,RG400
Cable Attachment Method (Shield/Contact) Crimp/Solder
Body Style Straight
Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications

Size
Length, in [mm] 1.51 [38.35]
Width/Dia., in [mm] 0.63 [16.00]
.
Weight, lbs [g] 0.068 [30.84]

Connector
Type N Female Reverse Polarity
Contact Material and Plating Silver
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

RP N Female Connector Crimp/Solder Attachment For RG55, RG141, RG142, RG223, RG400 from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP N Female Connector Crimp/Solder Attachment For RG55, RG141, RG142, RG223, RG400
PE44475

URL: http://www.pasternack.com/n-female-reverse-polarity-rg55-rg141-rg142-rg223-rg400-connector-pe44475-p.aspx

PE44475 REV 01 1
