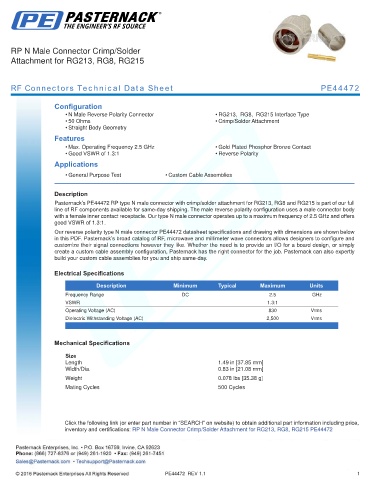

RP N Male Connector Crimp/Solder
Attachment for RG213, RG8, RG215

RF Connectors Technical Data Sheet PE44472

Configuration
• N Male Reverse Polarity Connector • RG213, RG8, RG215 Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 2.5 GHz • Gold Plated Phosphor Bronze Contact
• Good VSWR of 1.3:1 • Reverse Polarity
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44472 RP type N male connector with crimp/solder attachment for RG213, RG8 and RG215 is part of our full
line of RF components available for same-day shipping. The male reverse polarity configuration uses a male connector body
with a female inner contact receptacle. Our type N male connector operates up to a maximum frequency of 2.5 GHz and offers
good VSWR of 1.3:1.
Our reverse polarity type N male connector PE44472 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 2.5 GHz
VSWR 1.3:1
Operating Voltage (AC) 830 Vrms
Dielectric Withstanding Voltage (AC) 2,500 Vrms
.

Mechanical Specifications

Size
Length 1.49 in [37.85 mm]
Width/Dia. 0.83 in [21.08 mm]
.
Weight 0.078 lbs [35.38 g]
.
Mating Cycles 500 Cycles

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP N Male Connector Crimp/Solder Attachment for RG213, RG8, RG215 PE44472
