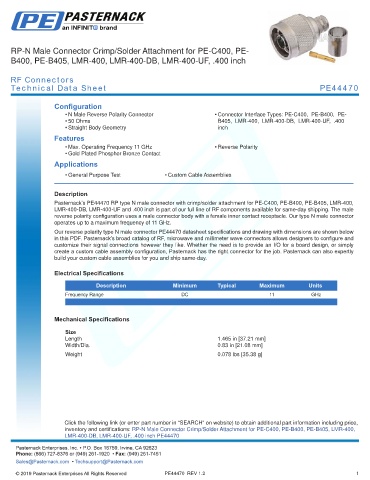

RP-N Male Connector Crimp/Solder Attachment for PE-C400, PE-
B400, PE-B405, LMR-400, LMR-400-DB, LMR-400-UF, .400 inch

RF Connectors
Technical Data Sheet PE44470

Configuration
• N Male Reverse Polarity Connector • Connector Interface Types: PE-C400, PE-B400, PE-
• 50 Ohms B405, LMR-400, LMR-400-DB, LMR-400-UF, .400
• Straight Body Geometry inch
Features
• Max. Operating Frequency 11 GHz • Reverse Polarity
• Gold Plated Phosphor Bronze Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44470 RP type N male connector with crimp/solder attachment for PE-C400, PE-B400, PE-B405, LMR-400,
LMR-400-DB, LMR-400-UF and .400 inch is part of our full line of RF components available for same-day shipping. The male
reverse polarity configuration uses a male connector body with a female inner contact receptacle. Our type N male connector
operates up to a maximum frequency of 11 GHz.
Our reverse polarity type N male connector PE44470 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
.

Mechanical Specifications

Size
Length 1.465 in [37.21 mm]
Width/Dia. 0.83 in [21.08 mm]
.
Weight 0.078 lbs [35.38 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP-N Male Connector Crimp/Solder Attachment for PE-C400, PE-B400, PE-B405, LMR-400,
-
LMR-400-DB, LMR-400-UF, .400 inch PE44470 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE44470 REV 1.2 1
