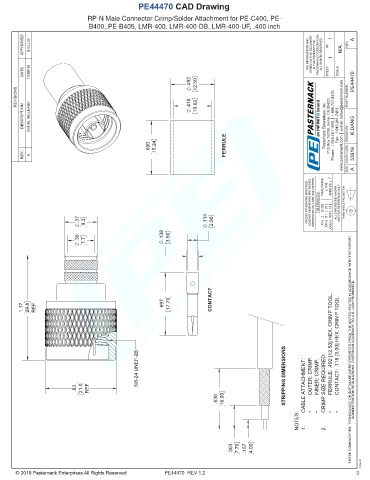

PE44470 CAD Drawing
RP-N Male Connector Crimp/Solder Attachment for PE-C400, PE-
B400, PE-B405, LMR-400, LMR-400-DB, LMR-400-UF, .400 inch

APPROVED S.ELLIS THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 1 N/A REV A

DATE 10/09/19 SHEET OF SCALE
.492 12.50 PE44470
REVISIONS .418 10.62 PART NUMBER

DESCRIPTION INITIAL RELEASE Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com K.DANG

DRAWN BY
.600 15.24 FERRULE CAGE CODE
REV. A SIZE 53919 A

UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS ± 1/32 ANGLES ± 1° ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

.37 9.3 .114 2.90 .2 [5.08] .X=± .01 [ .25 ] .XX=± .005 [ .13 ] .XXX=±

.30 7.7 .138 3.50

CONTACT
1.17 29.8 REF .697 17.70

5/8-24 UNEF-2B STRIPPING DIMENSIONS OUTER: CRIMP. INNER: CRIMP. FERRULE: .492 [12.50] HEX. CRIMP TOOL. CONTACT: .118 [3.00] HEX. CRIMP TOOL. THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

.83 21.0 REF CABLE ATTACHMENT: CRIMP SIZE REQUIRED:
.630 16.00

• • • •
NOTES:

1.
2.
Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

.303 7.70 .157 4.00

T-Rev.B
PE44470 REV 1.2 3
