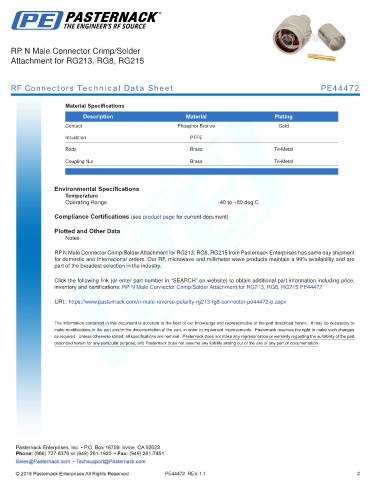

RP N Male Connector Crimp/Solder
Attachment for RG213, RG8, RG215

RF Connectors Technical Data Sheet PE44472

Material Specifications
Description Material Plating
Contact Phosphor Bronze Gold

Insulation PTFE
Body Brass Tri-Metal

Coupling Nut Brass Tri-Metal
.

Environmental Specifications
Temperature
Operating Range -40 to +80 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

RP N Male Connector Crimp/Solder Attachment for RG213, RG8, RG215 from Pasternack Enterprises has same day shipment
for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are
part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: RP N Male Connector Crimp/Solder Attachment for RG213, RG8, RG215 PE44472
