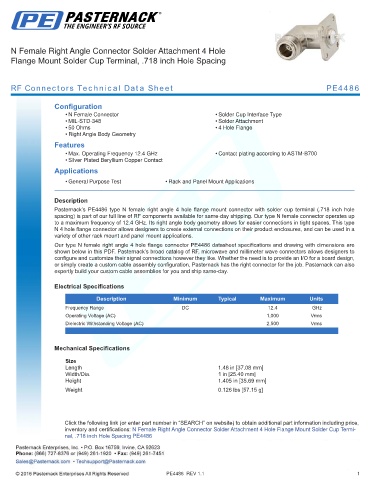

N Female Right Angle Connector Solder Attachment 4 Hole
Flange Mount Solder Cup Terminal, .718 inch Hole Spacing

RF Connectors Technical Data Sheet PE4486

Configuration
• N Female Connector • Solder Cup Interface Type
• MIL-STD-348 • Solder Attachment
• 50 Ohms • 4 Hole Flange
• Right Angle Body Geometry
Features
• Max. Operating Frequency 12.4 GHz • Contact plating according to ASTM-B700
• Silver Plated Beryllium Copper Contact
Applications

• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4486 type N female right angle 4 hole flange mount connector with solder cup terminal (.718 inch hole
spacing) is part of our full line of RF components available for same-day shipping. Our type N female connector operates up
to a maximum frequency of 12.4 GHz. Its right angle body geometry allows for easier connections in tight spaces. This type
N 4 hole flange connector allows designers to create external connections on their product enclosures, and can be used in a
variety of other rack mount and panel mount applications.
Our type N female right angle 4 hole flange connector PE4486 datasheet specifications and drawing with dimensions are
shown below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to
configure and customize their signal connections however they like. Whether the need is to provide an I/O for a board design,
or simply create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also
expertly build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 12.4 GHz
Operating Voltage (AC) 1,000 Vrms
Dielectric Withstanding Voltage (AC) 2,500 Vrms
.

Mechanical Specifications

Size
Length 1.46 in [37.08 mm]
Width/Dia. 1 in [25.40 mm]
Height 1.405 in [35.69 mm]
.
Weight 0.126 lbs [57.15 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Right Angle Connector Solder Attachment 4 Hole Flange Mount Solder Cup Termi-
nal, .718 inch Hole Spacing PE4486

PE4486 REV 1.1 1
