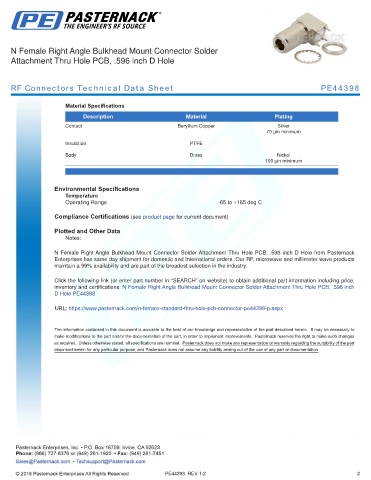

N Female Right Angle Bulkhead Mount Connector Solder
Attachment Thru Hole PCB, .596 inch D Hole

RF Connectors Technical Data Sheet PE44398

Material Specifications
Description Material Plating
Contact Beryllium Copper Silver
70 µin minimum

Insulation PTFE
Body Brass Nickel
100 µin minimum

.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

N Female Right Angle Bulkhead Mount Connector Solder Attachment Thru Hole PCB, .596 inch D Hole from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products
maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Right Angle Bulkhead Mount Connector Solder Attachment Thru Hole PCB, .596 inch
D Hole PE44398

URL: https://www.pasternack.com/n-female-standard-thru-hole-pcb-connector-pe44398-p.aspx

PE44398 REV 1.2 2
