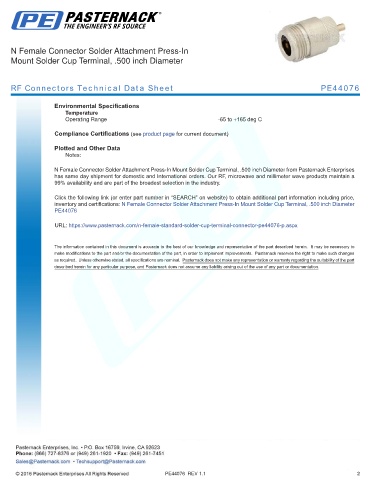

N Female Connector Solder Attachment Press-In
Mount Solder Cup Terminal, .500 inch Diameter

RF Connectors Technical Data Sheet PE44076

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

N Female Connector Solder Attachment Press-In Mount Solder Cup Terminal, .500 inch Diameter from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a
99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Connector Solder Attachment Press-In Mount Solder Cup Terminal, .500 inch Diameter
PE44076

URL: https://www.pasternack.com/n-female-standard-solder-cup-terminal-connector-pe44076-p.aspx

PE44076 REV 1.1 2
