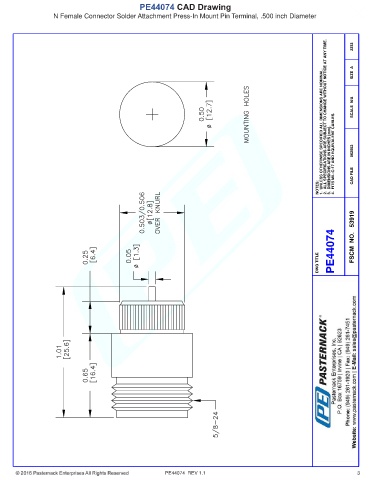

PE44074 CAD Drawing
N Female Connector Solder Attachment Press-In Mount Pin Terminal, .500 inch Diameter

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
2233

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 062502

NOTES: CAD FILE

PE44074 FSCM NO. 53919

DWG TITLE

PE44074 REV 1.1 3
