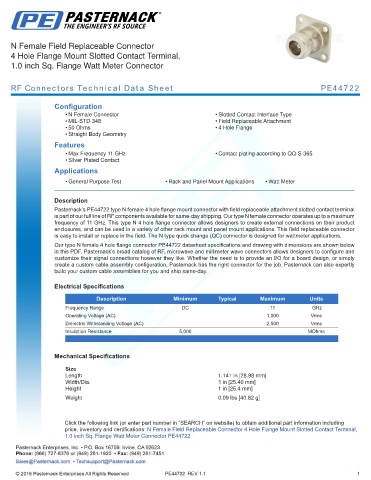

N Female Field Replaceable Connector
4 Hole Flange Mount Slotted Contact Terminal,
1.0 inch Sq. Flange Watt Meter Connector

RF Connectors Technical Data Sheet PE44722

Configuration
• N Female Connector • Slotted Contact Interface Type
• MIL-STD-348 • Field Replaceable Attachment
• 50 Ohms • 4 Hole Flange
• Straight Body Geometry
Features
• Max Frequency 11 GHz • Contact plating according to QQ-S-365
• Silver Plated Contact
Applications

• General Purpose Test • Rack and Panel Mount Applications • Watt Meter
.
Description
Pasternack’s PE44722 type N female 4 hole flange mount connector with field replaceable attachment slotted contact terminal
is part of our full line of RF components available for same-day shipping. Our type N female connector operates up to a maximum
frequency of 11 GHz. This type N 4 hole flange connector allows designers to create external connections on their product
enclosures, and can be used in a variety of other rack mount and panel mount applications. This field replaceable connector
is easy to install or replace in the field. The N type quick change (QC) connector is designed for wattmeter applications.
Our type N female 4 hole flange connector PE44722 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
Operating Voltage (AC) 1,000 Vrms
Dielectric Withstanding Voltage (AC) 2,500 Vrms
Insulation Resistance 5,000 MOhms
.

Mechanical Specifications
Size
Length 1.141 in [28.98 mm]
Width/Dia. 1 in [25.40 mm]
Height 1 in [25.4 mm]
.
Weight 0.09 lbs [40.82 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: N Female Field Replaceable Connector 4 Hole Flange Mount Slotted Contact Terminal,
1.0 inch Sq. Flange Watt Meter Connector PE44722

PE44722 REV 1.1 1
