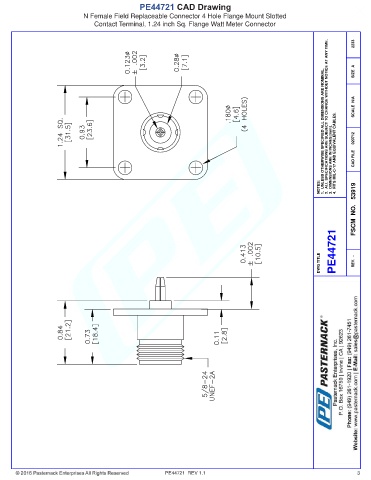

PE44721 CAD Drawing
N Female Field Replaceable Connector 4 Hole Flange Mount Slotted
Contact Terminal, 1.24 inch Sq. Flange Watt Meter Connector

2233
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 020712 CAD FILE

NOTES:
FSCM NO. 53919

PE44721

DWG TITLE REV. -

PE44721 REV 1.1 3
