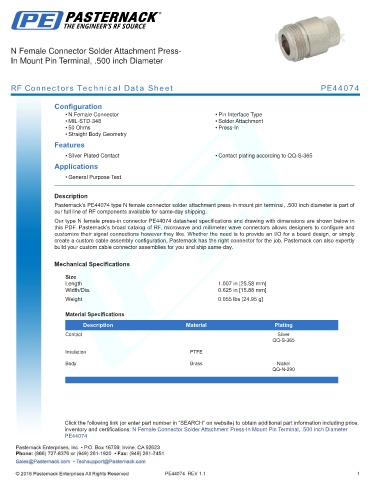

N Female Connector Solder Attachment Press-
In Mount Pin Terminal, .500 inch Diameter

RF Connectors Technical Data Sheet PE44074

Configuration
• N Female Connector • Pin Interface Type
• MIL-STD-348 • Solder Attachment
• 50 Ohms • Press-In
• Straight Body Geometry
Features
• Silver Plated Contact • Contact plating according to QQ-S-365
Applications

• General Purpose Test
.
Description
Pasternack’s PE44074 type N female connector solder attachment press-in mount pin terminal, .500 inch diameter is part of
our full line of RF components available for same-day shipping.
Our type N female press-in connector PE44074 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Mechanical Specifications
Size
Length 1.007 in [25.58 mm]
Width/Dia. 0.625 in [15.88 mm]
.
Weight 0.055 lbs [24.95 g]
.
Material Specifications
Description Material Plating
Contact Silver
QQ-S-365
Insulation PTFE
Body Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Connector Solder Attachment Press-In Mount Pin Terminal, .500 inch Diameter
PE44074

PE44074 REV 1.1 1
