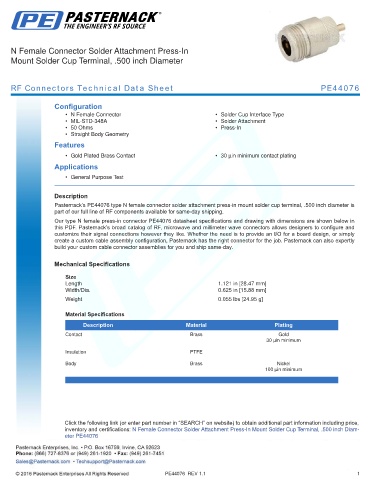

N Female Connector Solder Attachment Press-In
Mount Solder Cup Terminal, .500 inch Diameter

RF Connectors Technical Data Sheet PE44076

Configuration
• N Female Connector • Solder Cup Interface Type
• MIL-STD-348A • Solder Attachment
• 50 Ohms • Press-In
• Straight Body Geometry
Features
• Gold Plated Brass Contact • 30 µin minimum contact plating
Applications

• General Purpose Test
.
Description
Pasternack’s PE44076 type N female connector solder attachment press-in mount solder cup terminal, .500 inch diameter is
part of our full line of RF components available for same-day shipping.
Our type N female press-in connector PE44076 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Mechanical Specifications
Size
Length 1.121 in [28.47 mm]
Width/Dia. 0.625 in [15.88 mm]
.
Weight 0.055 lbs [24.95 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
30 µin minimum
Insulation PTFE
Body Brass Nickel
100 µin minimum
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Connector Solder Attachment Press-In Mount Solder Cup Terminal, .500 inch Diam-
eter PE44076

PE44076 REV 1.1 1
