N Female Press In Connector Solder Attachment
Tab Terminal, .500 inch Diameter

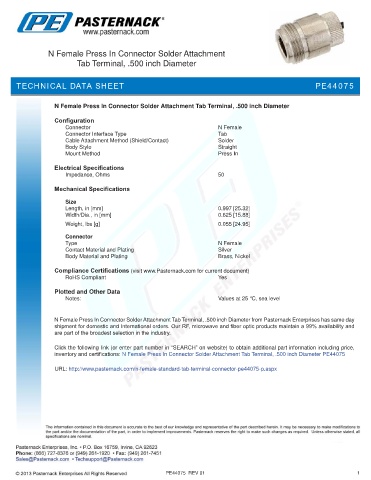

TECHNICAL DATA SHEET PE44075

N Female Press In Connector Solder Attachment Tab Terminal, .500 inch Diameter

Configuration
Connector N Female
Connector Interface Type Tab
Cable Attachment Method (Shield/Contact) Solder
Body Style Straight
Mount Method Press In

Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications

Size
Length, in [mm] 0.997 [25.32]
Width/Dia., in [mm] 0.625 [15.88]
.
Weight, lbs [g] 0.055 [24.95]
Connector
Type N Female
Contact Material and Plating Silver
Body Material and Plating Brass, Nickel

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level
