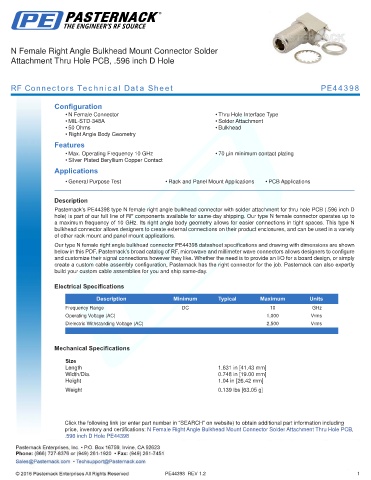

N Female Right Angle Bulkhead Mount Connector Solder
Attachment Thru Hole PCB, .596 inch D Hole

RF Connectors Technical Data Sheet PE44398

Configuration
• N Female Connector • Thru Hole Interface Type
• MIL-STD-348A • Solder Attachment
• 50 Ohms • Bulkhead
• Right Angle Body Geometry
Features
• Max. Operating Frequency 10 GHz • 70 µin minimum contact plating
• Silver Plated Beryllium Copper Contact
Applications

• General Purpose Test • Rack and Panel Mount Applications • PCB Applications
.
Description
Pasternack’s PE44398 type N female right angle bulkhead connector with solder attachment for thru hole PCB (.596 inch D
hole) is part of our full line of RF components available for same-day shipping. Our type N female connector operates up to
a maximum frequency of 10 GHz. Its right angle body geometry allows for easier connections in tight spaces. This type N
bulkhead connector allows designers to create external connections on their product enclosures, and can be used in a variety
of other rack mount and panel mount applications.
Our type N female right angle bulkhead connector PE44398 datasheet specifications and drawing with dimensions are shown
below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure
and customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 10 GHz
Operating Voltage (AC) 1,000 Vrms
Dielectric Withstanding Voltage (AC) 2,500 Vrms
.

Mechanical Specifications

Size
Length 1.631 in [41.43 mm]
Width/Dia. 0.748 in [19.00 mm]
Height 1.04 in [26.42 mm]
.
Weight 0.139 lbs [63.05 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: N Female Right Angle Bulkhead Mount Connector Solder Attachment Thru Hole PCB,
.596 inch D Hole PE44398
