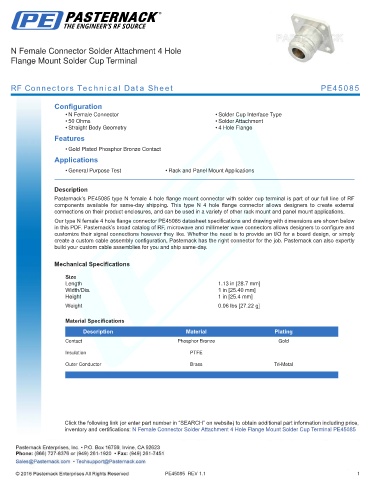

N Female Connector Solder Attachment 4 Hole
Flange Mount Solder Cup Terminal

RF Connectors Technical Data Sheet PE45085

Configuration
• N Female Connector • Solder Cup Interface Type
• 50 Ohms • Solder Attachment
• Straight Body Geometry • 4 Hole Flange
Features
• Gold Plated Phosphor Bronze Contact
Applications
• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE45085 type N female 4 hole flange mount connector with solder cup terminal is part of our full line of RF
components available for same-day shipping. This type N 4 hole flange connector allows designers to create external
connections on their product enclosures, and can be used in a variety of other rack mount and panel mount applications.
Our type N female 4 hole flange connector PE45085 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications
Size
Length 1.13 in [28.7 mm]
Width/Dia. 1 in [25.40 mm]
Height 1 in [25.4 mm]
.
Weight 0.06 lbs [27.22 g]
.
Material Specifications

Description Material Plating
Contact Phosphor Bronze Gold
Insulation PTFE
Outer Conductor Brass Tri-Metal

.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Connector Solder Attachment 4 Hole Flange Mount Solder Cup Terminal PE45085

PE45085 REV 1.1 1
