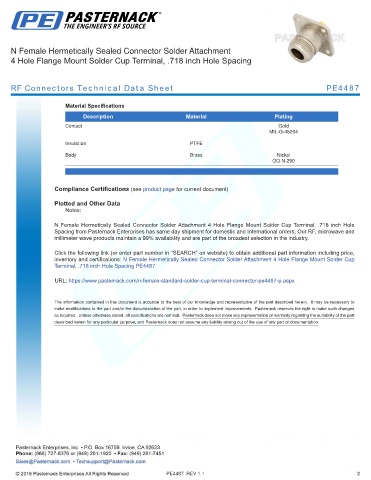

N Female Hermetically Sealed Connector Solder Attachment
4 Hole Flange Mount Solder Cup Terminal, .718 inch Hole Spacing

RF Connectors Technical Data Sheet PE4487

Material Specifications
Description Material Plating
Contact Gold
MIL-G-45204

Insulation PTFE
Body Brass Nickel
QQ-N-290

.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

N Female Hermetically Sealed Connector Solder Attachment 4 Hole Flange Mount Solder Cup Terminal, .718 inch Hole
Spacing from Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and
millimeter wave products maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Hermetically Sealed Connector Solder Attachment 4 Hole Flange Mount Solder Cup
Terminal, .718 inch Hole Spacing PE4487

URL: https://www.pasternack.com/n-female-standard-solder-cup-terminal-connector-pe4487-p.aspx

PE4487 REV 1.1 2
