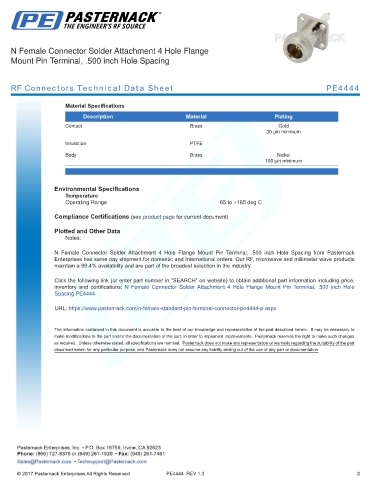

Page 2838 - 1.0/2.3 to SHV RF Connector Datasheets

N Female Connector Solder Attachment 4 Hole Flange
Mount Pin Terminal, .500 inch Hole Spacing

RF Connectors Technical Data Sheet PE4444

Material Specifications
Description Material Plating
Contact Brass Gold
30 µin minimum

Insulation PTFE
Body Brass Nickel
100 µin minimum

.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

N Female Connector Solder Attachment 4 Hole Flange Mount Pin Terminal, .500 inch Hole Spacing from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products
maintain a 99.4% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Connector Solder Attachment 4 Hole Flange Mount Pin Terminal, .500 inch Hole
Spacing PE4444

URL: https://www.pasternack.com/n-female-standard-pin-terminal-connector-pe4444-p.aspx

PE4444 REV 1.3 2
