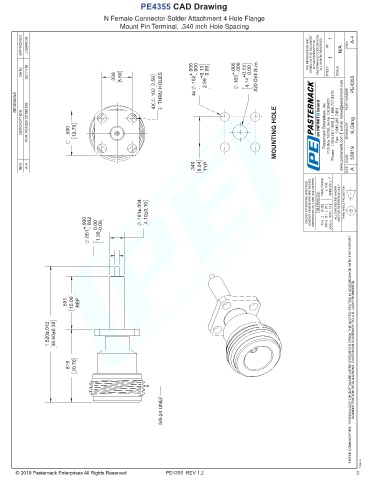

PE4355 CAD Drawing
N Female Connector Solder Attachment 4 Hole Flange
Mount Pin Terminal, .340 inch Hole Spacing

APPROVED J.GARCIA THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 1 N/A REV A-4

DATE 02/11/19 .339 8.60 .102 +.005 -.000 2.59 +0.13 0.00 .163 +.005 -.000 4.14 +0.13 0.00 #20 Drill Size. SHEET OF SCALE

2.59 .102 THRU HOLES 4x PE4355
REVISIONS 4X PART NUMBER

DESCRIPTION PCR PE4355 20190128 .500 12.70 MOUNTING HOLE Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY K.Dang

REV. A-4 .340 8.64 TYP FRACTIONS ± 1/32 ANGLES ± 1° CAGE SIZE 53919 A

.161±.004 4.10±0.10 UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: .2 [5.08] .01 [ .25 ] .005 [ .13 ] ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

.051 +.000 -.002 1.30 0.00 -0.06 .X=± .XX=± .XXX=±

.591 15.00 REF

1.520±.012 38.60±0.30

THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

.815 20.70

5/8-24 UNEF

-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

T-Rev.A
PE4355 REV 1.2 3
