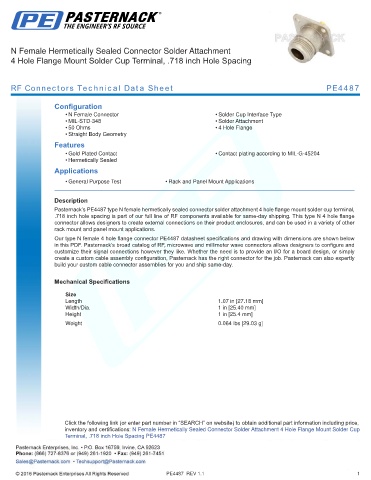

N Female Hermetically Sealed Connector Solder Attachment
4 Hole Flange Mount Solder Cup Terminal, .718 inch Hole Spacing

RF Connectors Technical Data Sheet PE4487

Configuration
• N Female Connector • Solder Cup Interface Type
• MIL-STD-348 • Solder Attachment
• 50 Ohms • 4 Hole Flange
• Straight Body Geometry
Features
• Gold Plated Contact • Contact plating according to MIL-G-45204
• Hermetically Sealed
Applications

• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4487 type N female hermetically sealed connector solder attachment 4 hole flange mount solder cup terminal,
.718 inch hole spacing is part of our full line of RF components available for same-day shipping. This type N 4 hole flange
connector allows designers to create external connections on their product enclosures, and can be used in a variety of other
rack mount and panel mount applications.
Our type N female 4 hole flange connector PE4487 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.07 in [27.18 mm]
Width/Dia. 1 in [25.40 mm]
Height 1 in [25.4 mm]
.
Weight 0.064 lbs [29.03 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Hermetically Sealed Connector Solder Attachment 4 Hole Flange Mount Solder Cup
Terminal, .718 inch Hole Spacing PE4487

PE4487 REV 1.1 1
