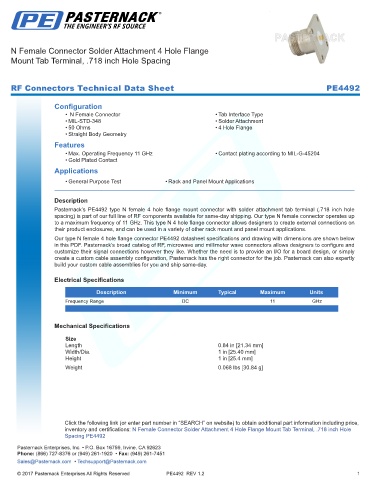

N Female Connector Solder Attachment 4 Hole Flange
Mount Tab Terminal, .718 inch Hole Spacing

RF Connectors Technical Data Sheet PE4492

Configuration
• N Female Connector • Tab Interface Type
• MIL-STD-348 • Solder Attachment
• 50 Ohms • 4 Hole Flange
• Straight Body Geometry
Features
• Max. Operating Frequency 11 GHz • Contact plating according to MIL-G-45204
• Gold Plated Contact
Applications

• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4492 type N female 4 hole flange mount connector with solder attachment tab terminal (.718 inch hole
spacing) is part of our full line of RF components available for same-day shipping. Our type N female connector operates up
to a maximum frequency of 11 GHz. This type N 4 hole flange connector allows designers to create external connections on
their product enclosures, and can be used in a variety of other rack mount and panel mount applications.
Our type N female 4 hole flange connector PE4492 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
.

Mechanical Specifications

Size
Length 0.84 in [21.34 mm]
Width/Dia. 1 in [25.40 mm]
Height 1 in [25.4 mm]
.
Weight 0.068 lbs [30.84 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Connector Solder Attachment 4 Hole Flange Mount Tab Terminal, .718 inch Hole
Spacing PE4492
