N Female Connector Solder Attachment 4 Hole Flange
Mount Pin Terminal, .340 inch Hole Spacing

RF Connectors

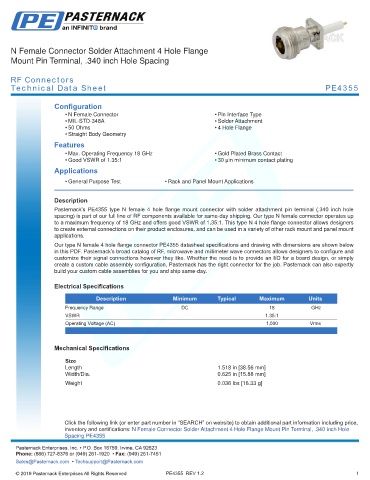

Technical Data Sheet PE4355

Configuration
• N Female Connector • Pin Interface Type
• MIL-STD-348A • Solder Attachment
• 50 Ohms • 4 Hole Flange
• Straight Body Geometry
Features
• Max. Operating Frequency 18 GHz • Gold Plated Brass Contact
• Good VSWR of 1.35:1 • 30 µin minimum contact plating
Applications

• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4355 type N female 4 hole flange mount connector with solder attachment pin terminal (.340 inch hole
spacing) is part of our full line of RF components available for same-day shipping. Our type N female connector operates up
to a maximum frequency of 18 GHz and offers good VSWR of 1.35:1. This type N 4 hole flange connector allows designers
to create external connections on their product enclosures, and can be used in a variety of other rack mount and panel mount
applications.
Our type N female 4 hole flange connector PE4355 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.35:1
Operating Voltage (AC) 1,000 Vrms
.

Mechanical Specifications

Size
Length 1.518 in [38.56 mm]
Width/Dia. 0.625 in [15.88 mm]
.
Weight 0.036 lbs [16.33 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Connector Solder Attachment 4 Hole Flange Mount Pin Terminal, .340 inch Hole -
Spacing PE4355 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE4355 REV 1.2 1
