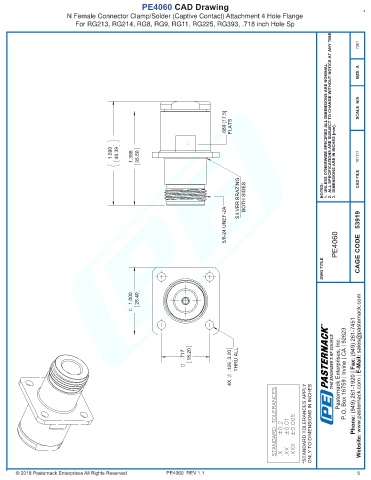

PE4060 CAD Drawing
N Female Connector Clamp/Solder (Captive Contact) Attachment 4 Hole Flange
For RG213, RG214, RG8, RG9, RG11, RG225, RG393, .718 inch Hole Sp

7361

SIZE A

SCALE N/A

.689 [17.5] FLATS 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.

1.590 40.39 1.398 35.50 101117
3. DIMENSIONS ARE IN INCHES [mm].
CAD FILE

SILVER BRAZING BOTH SIDES NOTES:

5/8-24 UNEF-2A

PE4060 CAGE CODE 53919

DWG TITLE

1.000 25.40

R

.717 18.20 3.20 THRU ALL

.126 THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623

4X Pasternack does not make Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com
STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES -

.XXX ±0.005
.XX ±0.01
.X ±0.2

any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE4060 REV 1.1 5
