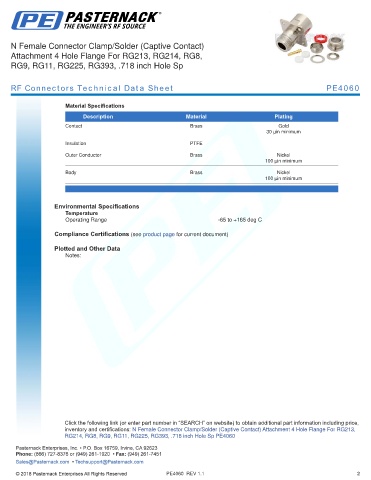

N Female Connector Clamp/Solder (Captive Contact)
Attachment 4 Hole Flange For RG213, RG214, RG8,
RG9, RG11, RG225, RG393, .718 inch Hole Sp

RF Connectors Technical Data Sheet PE4060

Material Specifications
Description Material Plating
Contact Brass Gold
30 µin minimum

Insulation PTFE
Outer Conductor Brass Nickel
100 µin minimum

Body Brass Nickel
100 µin minimum
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Connector Clamp/Solder (Captive Contact) Attachment 4 Hole Flange For RG213,
-
RG214, RG8, RG9, RG11, RG225, RG393, .718 inch Hole Sp PE4060 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE4060 REV 1.1 2
