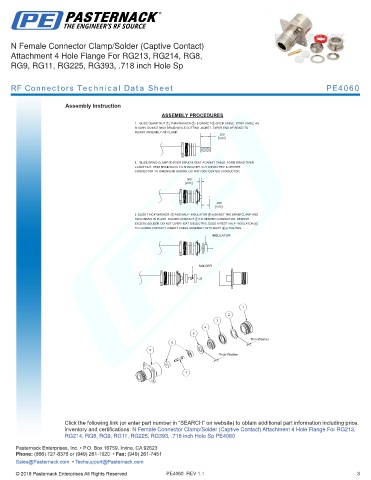

N Female Connector Clamp/Solder (Captive Contact)
Attachment 4 Hole Flange For RG213, RG214, RG8,
RG9, RG11, RG225, RG393, .718 inch Hole Sp

RF Connectors Technical Data Sheet PE4060

Assembly Instruction
ASSEMBLY PROCEDURES
1. SLIDE CLAMP NUT 1 , THIN-WASHER 2 & GASKET 3 OVER CABLE. STRIP CABLE AS
SHOWN. DO NOT NICK BRAID WHILE CUTTING JACKET. TAPER END OF BRAID TO
PERMIT ASSEMBLY OF CLAMP.
.350
8.89

2. SLIDE BRAID CLAMP 4 OVER BRAID & SEAT AGAINST CABLE. FORM BRAID OVER
CLAMP NUT. TRIM BRAID BACK TO SHOULDER. CUT DIELECTRIC & CENTER
CONDUCTOR TO DIMENSION SHOWN. DO NOT NICK CENTER CONDUCTOR.
.080
2.03

.200
5.08
3. SLIDE THICK-WASHER 5 AND HALF- INSULATOR 6 AGAINST THE BRAID CLAMP AND
HOLD BRAID IN PLACE. SOLDER CONTACT 7 TO CENTER CONDUCTOR. REMOVE
EXCESS SOLDER. DO NOT OVER HEAT DIELECTRIC.SLIDE A REST HALF- INSULATOR 6
TO LOCKED CONTACT. INSERT CABLE ASSEMBLY INTO BODY 8 & TIGHTEN.
INSULATOR

SOLDER

1
2
3
4
5
Thin-Washer
6 6
8
Thick-Washer

7

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Connector Clamp/Solder (Captive Contact) Attachment 4 Hole Flange For RG213,
-
RG214, RG8, RG9, RG11, RG225, RG393, .718 inch Hole Sp PE4060 Pasternack does not make
