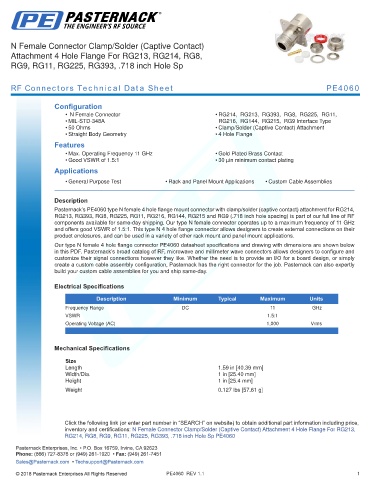

N Female Connector Clamp/Solder (Captive Contact)
Attachment 4 Hole Flange For RG213, RG214, RG8,
RG9, RG11, RG225, RG393, .718 inch Hole Sp

RF Connectors Technical Data Sheet PE4060

Configuration
• N Female Connector • RG214, RG213, RG393, RG8, RG225, RG11,
• MIL-STD-348A RG216, RG144, RG215, RG9 Interface Type
• 50 Ohms • Clamp/Solder (Captive Contact) Attachment
• Straight Body Geometry • 4 Hole Flange
Features
• Max. Operating Frequency 11 GHz • Gold Plated Brass Contact
• Good VSWR of 1.5:1 • 30 µin minimum contact plating
Applications

• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE4060 type N female 4 hole flange mount connector with clamp/solder (captive contact) attachment for RG214,
RG213, RG393, RG8, RG225, RG11, RG216, RG144, RG215 and RG9 (.718 inch hole spacing) is part of our full line of RF
components available for same-day shipping. Our type N female connector operates up to a maximum frequency of 11 GHz
and offers good VSWR of 1.5:1. This type N 4 hole flange connector allows designers to create external connections on their
product enclosures, and can be used in a variety of other rack mount and panel mount applications.
Our type N female 4 hole flange connector PE4060 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
VSWR 1.5:1
Operating Voltage (AC) 1,000 Vrms
.

Mechanical Specifications

Size
Length 1.59 in [40.39 mm]
Width/Dia. 1 in [25.40 mm]
Height 1 in [25.4 mm]
.
Weight 0.127 lbs [57.61 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Connector Clamp/Solder (Captive Contact) Attachment 4 Hole Flange For RG213,
-
RG214, RG8, RG9, RG11, RG225, RG393, .718 inch Hole Sp PE4060 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE4060 REV 1.1 1
