Page 2883 - 1.0/2.3 to SHV RF Connector Datasheets

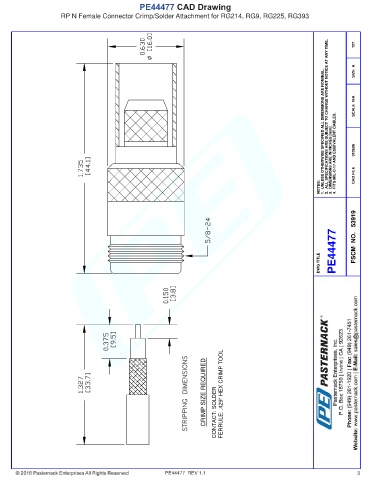

PE44477 CAD Drawing
RP N Female Connector Crimp/Solder Attachment for RG214, RG9, RG225, RG393

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 012606

NOTES: CAD FILE

PE44477 FSCM NO. 53919

DWG TITLE

CRIMP SIZE REQUIRED CONTACT: SOLDER FERRULE: .429" HEX CRIMP TOOL

PE44477 REV 1.1 3
