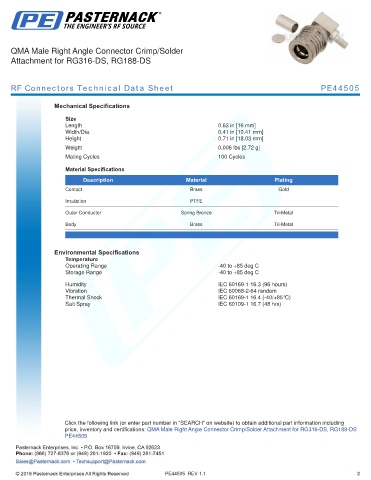

QMA Male Right Angle Connector Crimp/Solder
Attachment for RG316-DS, RG188-DS

RF Connectors Technical Data Sheet PE44505

Mechanical Specifications

Size
Length 0.63 in [16 mm]
Width/Dia. 0.41 in [10.41 mm]
Height 0.71 in [18.03 mm]
.
Weight 0.006 lbs [2.72 g]
.
Mating Cycles 100 Cycles
Material Specifications
Description Material Plating
Contact Brass Gold

Insulation PTFE
Outer Conductor Spring Bronze Tri-Metal

Body Brass Tri-Metal
.

Environmental Specifications
Temperature
Operating Range -40 to +85 deg C
Storage Range -40 to +85 deg C

Humidity IEC 60169-1 16.3 (96 hours)
Vibration IEC 60068-2-64 random
Thermal Shock IEC 60169-1 16.4 (-40/+85°C)
Salt Spray IEC 60109-1 16.7 (48 hrs)

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: QMA Male Right Angle Connector Crimp/Solder Attachment for RG316-DS, RG188-DS
PE44505

PE44505 REV 1.1 2
