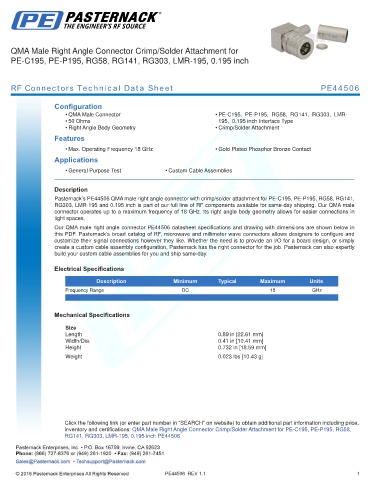

QMA Male Right Angle Connector Crimp/Solder Attachment for
PE-C195, PE-P195, RG58, RG141, RG303, LMR-195, 0.195 inch

RF Connectors Technical Data Sheet PE44506

Configuration
• QMA Male Connector • PE-C195, PE-P195, RG58, RG141, RG303, LMR-
• 50 Ohms 195, 0.195 inch Interface Type
• Right Angle Body Geometry • Crimp/Solder Attachment
Features
• Max. Operating Frequency 18 GHz • Gold Plated Phosphor Bronze Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44506 QMA male right angle connector with crimp/solder attachment for PE-C195, PE-P195, RG58, RG141,
RG303, LMR-195 and 0.195 inch is part of our full line of RF components available for same-day shipping. Our QMA male
connector operates up to a maximum frequency of 18 GHz. Its right angle body geometry allows for easier connections in
tight spaces.
Our QMA male right angle connector PE44506 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
.

Mechanical Specifications

Size
Length 0.89 in [22.61 mm]
Width/Dia. 0.41 in [10.41 mm]
Height 0.732 in [18.59 mm]
.
Weight 0.023 lbs [10.43 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: QMA Male Right Angle Connector Crimp/Solder Attachment for PE-C195, PE-P195, RG58,
RG141, RG303, LMR-195, 0.195 inch PE44506

PE44506 REV 1.1 1
