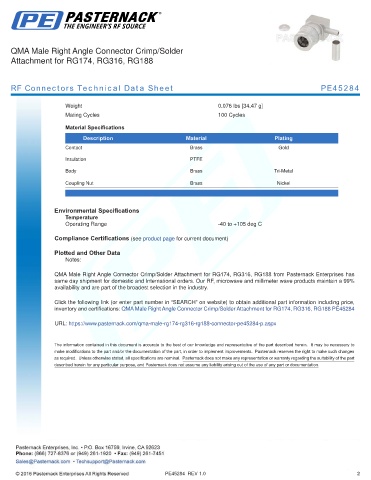

QMA Male Right Angle Connector Crimp/Solder
Attachment for RG174, RG316, RG188

RF Connectors Technical Data Sheet PE45284

Weight 0.076 lbs [34.47 g]
.
Mating Cycles 100 Cycles

Material Specifications
Description Material Plating
Contact Brass Gold
Insulation PTFE

Body Brass Tri-Metal
Coupling Nut Brass Nickel
.

Environmental Specifications
Temperature
Operating Range -40 to +105 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

QMA Male Right Angle Connector Crimp/Solder Attachment for RG174, RG316, RG188 from Pasternack Enterprises has
same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99%
availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: QMA Male Right Angle Connector Crimp/Solder Attachment for RG174, RG316, RG188 PE45284

URL: https://www.pasternack.com/qma-male-rg174-rg316-rg188-connector-pe45284-p.aspx

PE45284 REV 1.0 2
