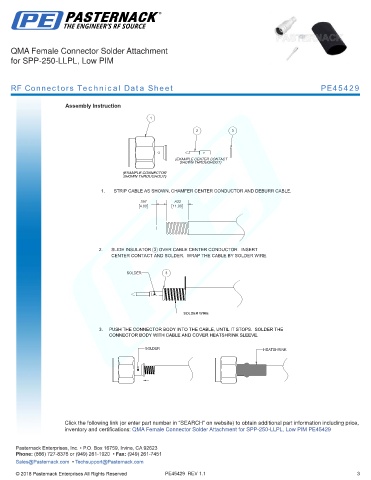

QMA Female Connector Solder Attachment
for SPP-250-LLPL, Low PIM

RF Connectors Technical Data Sheet PE45429

Assembly Instruction

1
2 3

(EXAMPLE CENTER CONTACT
SHOWN THROUGHOUT)
(EXAMPLE CONNECTOR
SHOWN THROUGHOUT)

1. STRIP CABLE AS SHOWN, CHAMFER CENTER CONDUCTOR AND DEBURR CABLE.
.157 .433
4.00 11.00

2. SLIDE INSULATOR 3 OVER CABLE CENTER CONDUCTOR. INSERT
CENTER CONTACT AND SOLDER. WRAP THE CABLE BY SOLDER WIRE.

SOLDER 3

SOLDER WIRE

3. PUSH THE CONNECTOR BODY INTO THE CABLE, UNTIL IT STOPS. SOLDER THE
CONNECTOR BODY WITH CABLE AND COVER HEATSHRINK SLEEVE.

SOLDER HEATSHRINK

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: QMA Female Connector Solder Attachment for SPP-250-LLPL, Low PIM PE45429 -
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE45429 REV 1.1 3
