QMA Female Connector Solder Attachment Thru Hole PCB

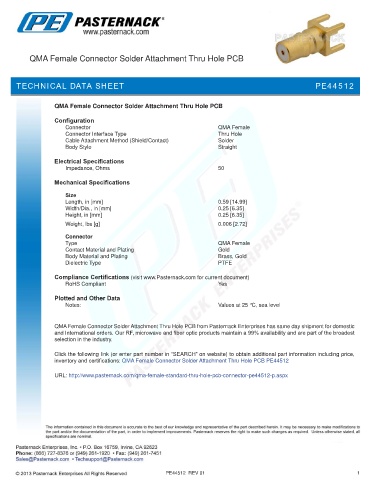

TECHNICAL DATA SHEET PE44512

QMA Female Connector Solder Attachment Thru Hole PCB

Configuration
Connector QMA Female
Connector Interface Type Thru Hole
Cable Attachment Method (Shield/Contact) Solder
Body Style Straight
Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications

Size
Length, in [mm] 0.59 [14.99]
Width/Dia., in [mm] 0.25 [6.35]
Height, in [mm] 0.25 [6.35]
.
Weight, lbs [g] 0.006 [2.72]
Connector
Type QMA Female
Contact Material and Plating Gold
Body Material and Plating Brass, Gold
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

QMA Female Connector Solder Attachment Thru Hole PCB from Pasternack Enterprises has same day shipment for domestic
and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest
selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: QMA Female Connector Solder Attachment Thru Hole PCB PE44512

URL: http://www.pasternack.com/qma-female-standard-thru-hole-pcb-connector-pe44512-p.aspx

PE44512 REV 01 1
