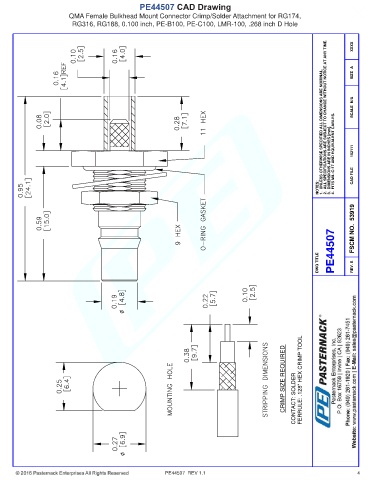

PE44507 CAD Drawing
QMA Female Bulkhead Mount Connector Crimp/Solder Attachment for RG174,
RG316, RG188, 0.100 inch, PE-B100, PE-C100, LMR-100, .268 inch D Hole

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 102111

NOTES: CAD FILE

PE44507 FSCM NO. 53919

DWG TITLE REV. E

CRIMP SIZE REQUIRED CONTACT: SOLDER FERRULE: .128" HEX CRIMP TOOL

PE44507 REV 1.1 4
