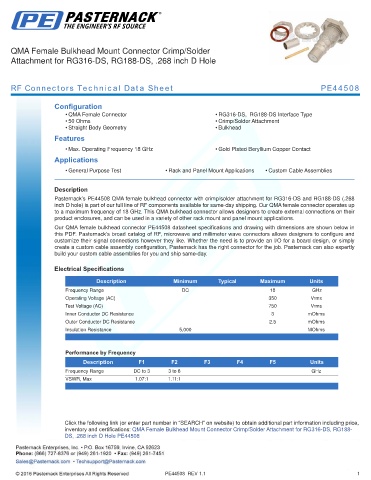

QMA Female Bulkhead Mount Connector Crimp/Solder
Attachment for RG316-DS, RG188-DS, .268 inch D Hole

RF Connectors Technical Data Sheet PE44508

Configuration
• QMA Female Connector • RG316-DS, RG188-DS Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Straight Body Geometry • Bulkhead
Features
• Max. Operating Frequency 18 GHz • Gold Plated Beryllium Copper Contact
Applications
• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE44508 QMA female bulkhead connector with crimp/solder attachment for RG316-DS and RG188-DS (.268
inch D hole) is part of our full line of RF components available for same-day shipping. Our QMA female connector operates up
to a maximum frequency of 18 GHz. This QMA bulkhead connector allows designers to create external connections on their
product enclosures, and can be used in a variety of other rack mount and panel mount applications.
Our QMA female bulkhead connector PE44508 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
Operating Voltage (AC) 350 Vrms
Test Voltage (AC) 750 Vrms
Inner Conductor DC Resistance 3 mOhms
Outer Conductor DC Resistance 2.5 mOhms
Insulation Resistance 5,000 MOhms
.

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 3 3 to 6 GHz
VSWR, Max 1.07:1 1.11:1
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: QMA Female Bulkhead Mount Connector Crimp/Solder Attachment for RG316-DS, RG188-
DS, .268 inch D Hole PE44508
