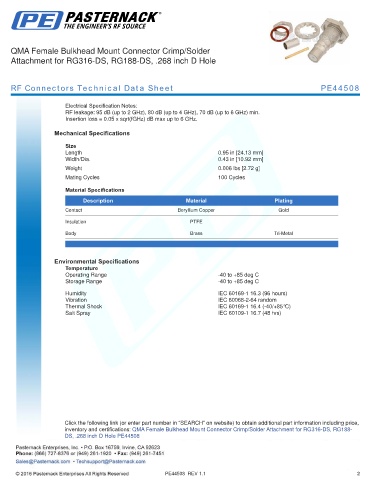

QMA Female Bulkhead Mount Connector Crimp/Solder
Attachment for RG316-DS, RG188-DS, .268 inch D Hole

RF Connectors Technical Data Sheet PE44508

Electrical Specification Notes:
RF leakage: 95 dB (up to 2 GHz), 80 dB (up to 4 GHz), 70 dB (up to 6 GHz) min.
Insertion loss = 0.05 x sqrt(fGHz) dB max up to 6 GHz.

Mechanical Specifications
Size
Length 0.95 in [24.13 mm]
Width/Dia. 0.43 in [10.92 mm]
.
Weight 0.006 lbs [2.72 g]
.
Mating Cycles 100 Cycles
Material Specifications

Description Material Plating
Contact Beryllium Copper Gold
Insulation PTFE

Body Brass Tri-Metal
.

Environmental Specifications
Temperature
Operating Range -40 to +85 deg C
Storage Range -40 to +85 deg C

Humidity IEC 60169-1 16.3 (96 hours)
Vibration IEC 60068-2-64 random
Thermal Shock IEC 60169-1 16.4 (-40/+85°C)
Salt Spray IEC 60109-1 16.7 (48 hrs)
