QMA Female Bulkhead Connector Crimp/Solder
Attachment For RG58, RG141, .268 inch D Hole

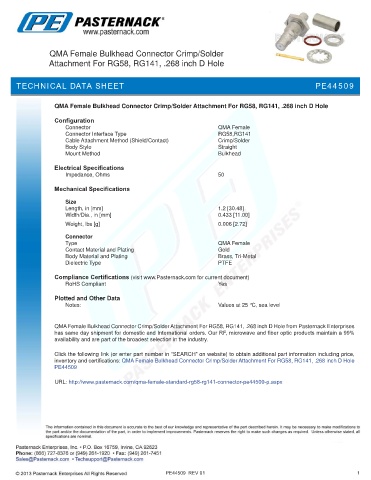

TECHNICAL DATA SHEET PE44509

QMA Female Bulkhead Connector Crimp/Solder Attachment For RG58, RG141, .268 inch D Hole

Configuration
Connector QMA Female
Connector Interface Type RG58,RG141
Cable Attachment Method (Shield/Contact) Crimp/Solder
Body Style Straight
Mount Method Bulkhead

Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications

Size
Length, in [mm] 1.2 [30.48]
Width/Dia., in [mm] 0.433 [11.00]
.
Weight, lbs [g] 0.006 [2.72]
Connector
Type QMA Female
Contact Material and Plating Gold
Body Material and Plating Brass, Tri-Metal
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

QMA Female Bulkhead Connector Crimp/Solder Attachment For RG58, RG141, .268 inch D Hole from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: QMA Female Bulkhead Connector Crimp/Solder Attachment For RG58, RG141, .268 inch D Hole
PE44509

URL: http://www.pasternack.com/qma-female-standard-rg58-rg141-connector-pe44509-p.aspx
