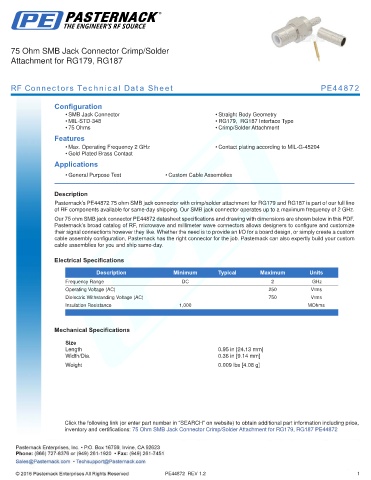

75 Ohm SMB Jack Connector Crimp/Solder
Attachment for RG179, RG187

RF Connectors Technical Data Sheet PE44872

Configuration
• SMB Jack Connector • Straight Body Geometry
• MIL-STD-348 • RG179, RG187 Interface Type
• 75 Ohms • Crimp/Solder Attachment
Features
• Max. Operating Frequency 2 GHz • Contact plating according to MIL-G-45204
• Gold Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44872 75 ohm SMB jack connector with crimp/solder attachment for RG179 and RG187 is part of our full line
of RF components available for same-day shipping. Our SMB jack connector operates up to a maximum frequency of 2 GHz.
Our 75 ohm SMB jack connector PE44872 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 2 GHz
Operating Voltage (AC) 250 Vrms
Dielectric Withstanding Voltage (AC) 750 Vrms
Insulation Resistance 1,000 MOhms
.

Mechanical Specifications

Size
Length 0.95 in [24.13 mm]
Width/Dia. 0.36 in [9.14 mm]
.
Weight 0.009 lbs [4.08 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm SMB Jack Connector Crimp/Solder Attachment for RG179, RG187 PE44872

PE44872 REV 1.2 1
