75 Ohm SMB Jack Connector Crimp/Solder
Attachment for PE-B150, RG180, RG195

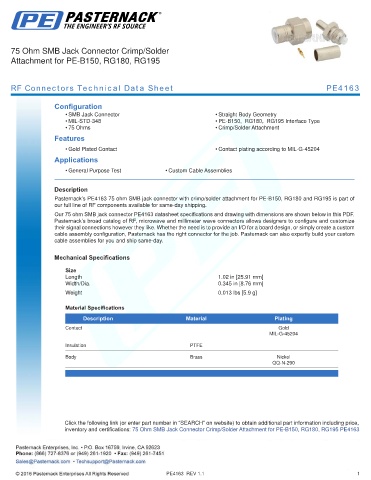

RF Connectors Technical Data Sheet PE4163

Configuration
• SMB Jack Connector • Straight Body Geometry
• MIL-STD-348 • PE-B150, RG180, RG195 Interface Type
• 75 Ohms • Crimp/Solder Attachment
Features
• Gold Plated Contact • Contact plating according to MIL-G-45204
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4163 75 ohm SMB jack connector with crimp/solder attachment for PE-B150, RG180 and RG195 is part of
our full line of RF components available for same-day shipping.
Our 75 ohm SMB jack connector PE4163 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.02 in [25.91 mm]
Width/Dia. 0.345 in [8.76 mm]
.
Weight 0.013 lbs [5.9 g]
.
Material Specifications
Description Material Plating
Contact Gold
MIL-G-45204
Insulation PTFE

Body Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm SMB Jack Connector Crimp/Solder Attachment for PE-B150, RG180, RG195 PE4163

PE4163 REV 1.1 1
