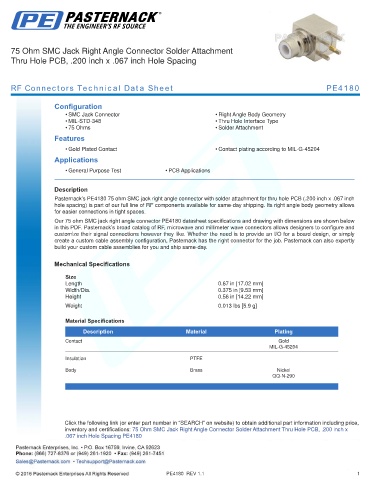

75 Ohm SMC Jack Right Angle Connector Solder Attachment
Thru Hole PCB, .200 inch x .067 inch Hole Spacing

RF Connectors Technical Data Sheet PE4180

Configuration
• SMC Jack Connector • Right Angle Body Geometry
• MIL-STD-348 • Thru Hole Interface Type
• 75 Ohms • Solder Attachment
Features
• Gold Plated Contact • Contact plating according to MIL-G-45204
Applications
• General Purpose Test • PCB Applications
.
Description
Pasternack’s PE4180 75 ohm SMC jack right angle connector with solder attachment for thru hole PCB (.200 inch x .067 inch
hole spacing) is part of our full line of RF components available for same-day shipping. Its right angle body geometry allows
for easier connections in tight spaces.
Our 75 ohm SMC jack right angle connector PE4180 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications
Size
Length 0.67 in [17.02 mm]
Width/Dia. 0.375 in [9.53 mm]
Height 0.56 in [14.22 mm]
.
Weight 0.013 lbs [5.9 g]
.
Material Specifications

Description Material Plating
Contact Gold
MIL-G-45204
Insulation PTFE

Body Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm SMC Jack Right Angle Connector Solder Attachment Thru Hole PCB, .200 inch x
.067 inch Hole Spacing PE4180

PE4180 REV 1.1 1
