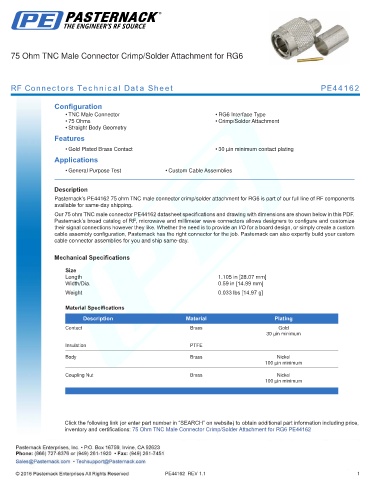

75 Ohm TNC Male Connector Crimp/Solder Attachment for RG6

RF Connectors Technical Data Sheet PE44162

Configuration
• TNC Male Connector • RG6 Interface Type
• 75 Ohms • Crimp/Solder Attachment
• Straight Body Geometry
Features
• Gold Plated Brass Contact • 30 µin minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44162 75 ohm TNC male connector crimp/solder attachment for RG6 is part of our full line of RF components
available for same-day shipping.
Our 75 ohm TNC male connector PE44162 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable connector assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.105 in [28.07 mm]
Width/Dia. 0.59 in [14.99 mm]
.
Weight 0.033 lbs [14.97 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
30 µin minimum
Insulation PTFE

Body Brass Nickel
100 µin minimum

Coupling Nut Brass Nickel
100 µin minimum
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm TNC Male Connector Crimp/Solder Attachment for RG6 PE44162

PE44162 REV 1.1 1
