75 Ohm TNC Male Connector Crimp/Solder
Attachment for RG11, RG144

RF Connectors

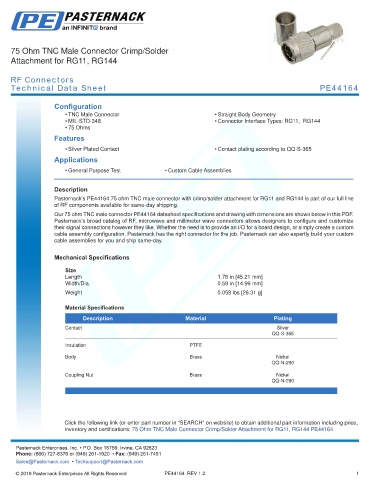

Technical Data Sheet PE44164

Configuration
• TNC Male Connector • Straight Body Geometry
• MIL-STD-348 • Connector Interface Types: RG11, RG144
• 75 Ohms
Features
• Silver Plated Contact • Contact plating according to QQ-S-365
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44164 75 ohm TNC male connector with crimp/solder attachment for RG11 and RG144 is part of our full line
of RF components available for same-day shipping.
Our 75 ohm TNC male connector PE44164 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.78 in [45.21 mm]
Width/Dia. 0.59 in [14.99 mm]
.
Weight 0.058 lbs [26.31 g]
.
Material Specifications
Description Material Plating
Contact Silver
QQ-S-365
Insulation PTFE

Body Brass Nickel
QQ-N-290

Coupling Nut Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm TNC Male Connector Crimp/Solder Attachment for RG11, RG144 PE44164 -
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE44164 REV 1.2 1
