75 Ohm TNC Male Connector Crimp/
Solder Attachment for RG59, RG62

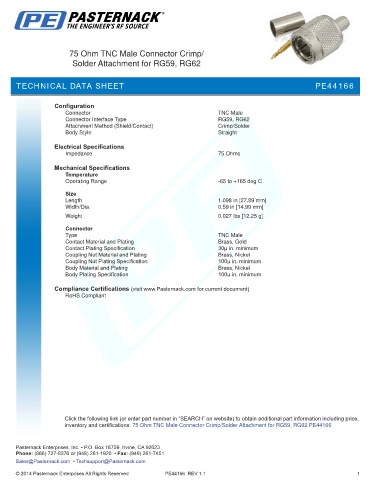

TECHNICAL DATA SHEET PE44166

Configuration
Connector TNC Male
Connector Interface Type RG59, RG62
Attachment Method (Shield/Contact) Crimp/Solder
Body Style Straight

Electrical Specifications
Impedance 75 Ohms

Mechanical Specifications
Temperature
Operating Range -65 to +165 deg C
Size
Length 1.098 in [27.89 mm]
Width/Dia. 0.59 in [14.99 mm]
.
Weight 0.027 lbs [12.25 g]
Connector
Type TNC Male
Contact Material and Plating Brass, Gold
Contact Plating Specification 30µ in. minimum
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification 100µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 100µ in. minimum

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm TNC Male Connector Crimp/Solder Attachment for RG59, RG62 PE44166

PE44166 REV 1.1 1
