Page 1106 - TNC to Double Banana RF Connector Datasheets

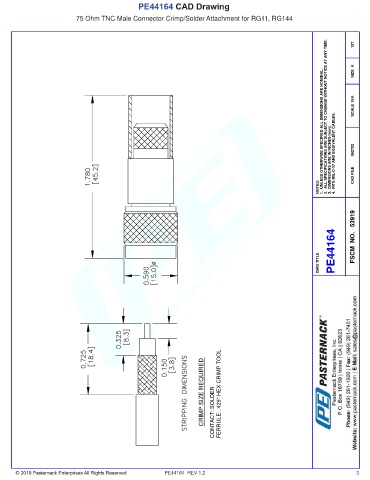

PE44164 CAD Drawing
75 Ohm TNC Male Connector Crimp/Solder Attachment for RG11, RG144

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 062702

NOTES: CAD FILE

PE44164 FSCM NO. 53919

DWG TITLE

CRIMP SIZE REQUIRED CONTACT: SOLDER FERRULE: .429" HEX CRIMP TOOL

Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation. -

PE44164 REV 1.2 3
