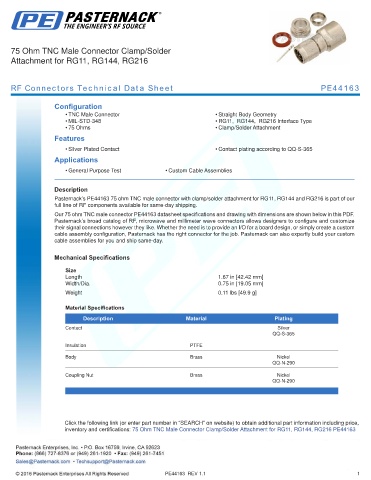

75 Ohm TNC Male Connector Clamp/Solder
Attachment for RG11, RG144, RG216

RF Connectors Technical Data Sheet PE44163

Configuration
• TNC Male Connector • Straight Body Geometry
• MIL-STD-348 • RG11, RG144, RG216 Interface Type
• 75 Ohms • Clamp/Solder Attachment
Features
• Silver Plated Contact • Contact plating according to QQ-S-365
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44163 75 ohm TNC male connector with clamp/solder attachment for RG11, RG144 and RG216 is part of our
full line of RF components available for same-day shipping.
Our 75 ohm TNC male connector PE44163 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.67 in [42.42 mm]
Width/Dia. 0.75 in [19.05 mm]
.
Weight 0.11 lbs [49.9 g]
.
Material Specifications
Description Material Plating
Contact Silver
QQ-S-365
Insulation PTFE

Body Brass Nickel
QQ-N-290

Coupling Nut Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm TNC Male Connector Clamp/Solder Attachment for RG11, RG144, RG216 PE44163
