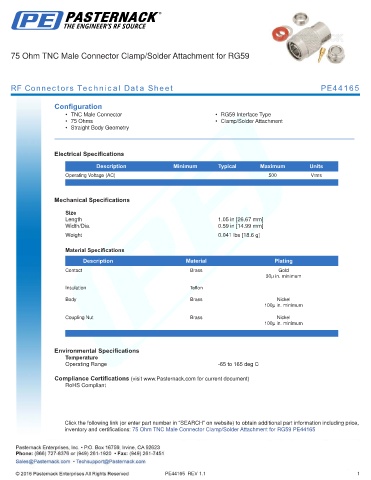

75 Ohm TNC Male Connector Clamp/Solder Attachment for RG59

RF Connectors Technical Data Sheet PE44165

Configuration
• TNC Male Connector • RG59 Interface Type
• 75 Ohms • Clamp/Solder Attachment
• Straight Body Geometry
.

Electrical Specifications

Description Minimum Typical Maximum Units
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 1.05 in [26.67 mm]
Width/Dia. 0.59 in [14.99 mm]
.
Weight 0.041 lbs [18.6 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
30µ in. minimum

Insulation Teflon
Body Brass Nickel
100µ in. minimum

Coupling Nut Brass Nickel
100µ in. minimum
.

Environmental Specifications
Temperature
Operating Range -65 to 165 deg C

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm TNC Male Connector Clamp/Solder Attachment for RG59 PE44165

PE44165 REV 1.1 1
