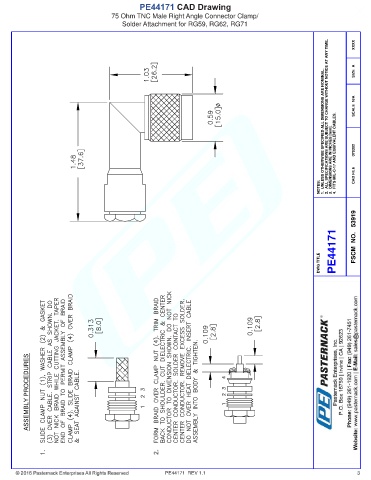

PE44171 CAD Drawing
75 Ohm TNC Male Right Angle Connector Clamp/
Solder Attachment for RG59, RG62, RG71

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 070302

NOTES: CAD FILE

PE44171 FSCM NO. 53919

DWG TITLE

ASSEMBLY PROCEDURES

PE44171 REV 1.1 3
