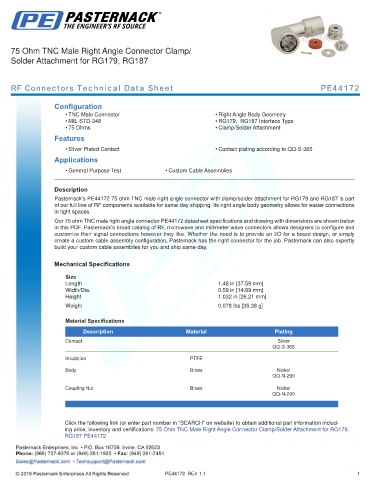

75 Ohm TNC Male Right Angle Connector Clamp/
Solder Attachment for RG179, RG187

RF Connectors Technical Data Sheet PE44172

Configuration
• TNC Male Connector • Right Angle Body Geometry
• MIL-STD-348 • RG179, RG187 Interface Type
• 75 Ohms • Clamp/Solder Attachment
Features
• Silver Plated Contact • Contact plating according to QQ-S-365
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44172 75 ohm TNC male right angle connector with clamp/solder attachment for RG179 and RG187 is part
of our full line of RF components available for same-day shipping. Its right angle body geometry allows for easier connections
in tight spaces.
Our 75 ohm TNC male right angle connector PE44172 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications
Size
Length 1.48 in [37.59 mm]
Width/Dia. 0.59 in [14.99 mm]
Height 1.032 in [26.21 mm]
.
Weight 0.078 lbs [35.38 g]
.
Material Specifications

Description Material Plating
Contact Silver
QQ-S-365
Insulation PTFE

Body Brass Nickel
QQ-N-290
Coupling Nut Brass Nickel
QQ-N-290

.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information includ-
ing price, inventory and certifications: 75 Ohm TNC Male Right Angle Connector Clamp/Solder Attachment for RG179,
RG187 PE44172

PE44172 REV 1.1 1
